Solvent and Chemical Batching

Industries universally rely on solvents, acids, and aggressive chemicals. Therefore, batching accuracy of these chemicals directly impacts product quality, safety, and profitability. Fluidyne’s 6730 Preset Batching System range is engineered specifically for these realities, delivering precise solvent and chemical batching without assumptions, approximations, or inferred calculations.

Unlike velocity-based technologies, solvent and chemical batching using oscillating piston positive displacement flowmeters measures actual volume transferred. Each batch is delivered based on real volumetric displacement, not estimated flow. This makes Fluidyne systems exceptionally reliable for applications where fluid properties vary, flow conditions fluctuate, or repeatability is critical.

Solvent and chemical batching equipment used in petroleum processing plants

Core Information

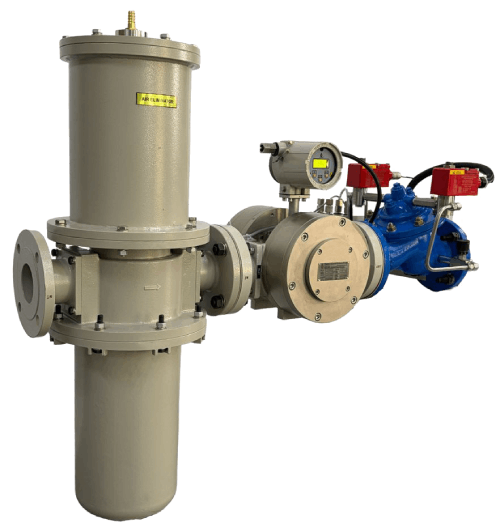

Fluidyne solvent and chemical batching systems are designed as compact, robust, and production-ready packages.

Strainer air eliminator

  • Strainer and float assembly for air elimination
  • Materials – WCB, CF3M cast options
  • Back pressure valve
  • Mesh options – 149/100/75/50/25/3 microns
  • Materials – WCB/CF3M body, 316 SS mesh

  • Patented oscillating piston flow technology for precise measurement of product
  • Single rotor design in engineering polymer
  • Low pressure loss. No metal-to-metal contact
  • Complete CF3M 316L construction
  • IECEx and ATEX approved
  • Accuracy – Better than ±0.1% and repeatability better than ±0.02%

  • Setting of batch quantities
  • Measurement of delivered quantity, flow rate and totalizers
  • Display
  • Custody transfer mode (K Factor masking)
  • IECEx and ATEX approved
  • Pulse, Modbus, 4-20 mA output options

  • Usually pneumatically operated ball valve with actuator
  • Optional digital control valve for solvents and petroleum products
  • Solenoid coils for multi-stage control
  • IECEx and ATEX approved
  • WCB/CF8M construction

  • Pressure switches for empty pipe detection
  • Siphon breaker
  • Earthing detector output integration

System workflow

  • Batch controller receives target volume
  • Flowmeter measures true volumetric flow
  • Valve opens until batch volume is achieved
  • Valve closes sharply at preset cut-off
  • High repeatability from batch to batch
  • Batch controller can also control delivery pump
  • Batch controller accepts inputs from smart ground detector, pressure switch and pauses flow control

This configuration ensures solvent and chemical batching remains accurate regardless of viscosity, density, or temperature changes.

High-volume solvent and chemical batching setup for petroleum products
  • Oscillating piston PD flowmeter core
  • Flameproof/explosion-proof certified
  • Weights and Measures certified
  • Preset batch controller with keypad or HMI
  • Sharp on-off valve control
  • High batch resolution
  • High repeatability of better than ±0.02%
  • Compatible with corrosive fluids
  • Compact skid or line-mounted design
  • PLC-DCS integration via 4-20 mA, Modbus or pulse outputs
  • True volumetric solvent and chemical batching
  • Measurement and control via same device
  • No straight runs of pipe needed
  • Minimal batch overrun or shortfall
  • Excellent low-flow control
  • Improved process consistency
  • Lower recalibration frequency
  • All industrial outputs

Applications

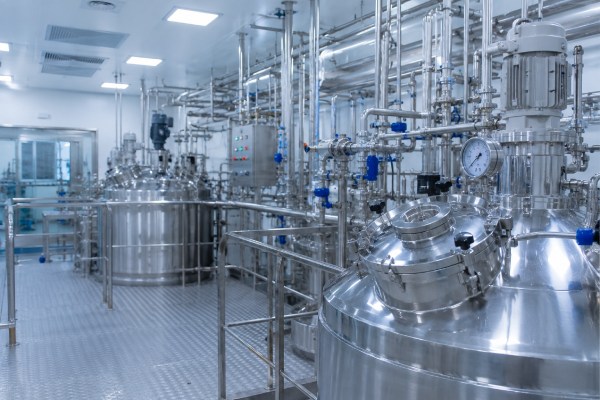

Pharmaceutical and life sciences

  • Solvents

  • Demineralized water

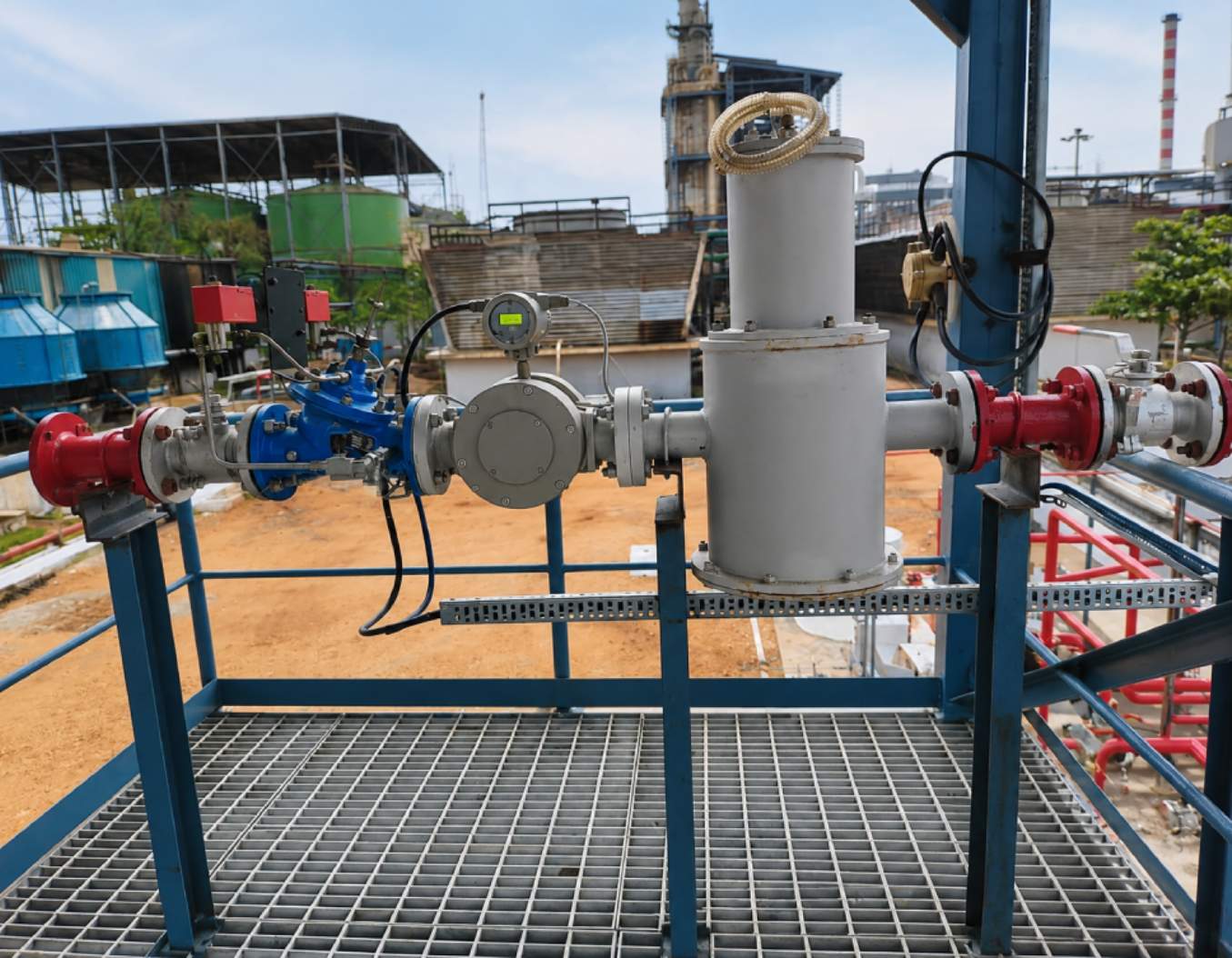

Industrial pipeline integration for solvent and chemical batching

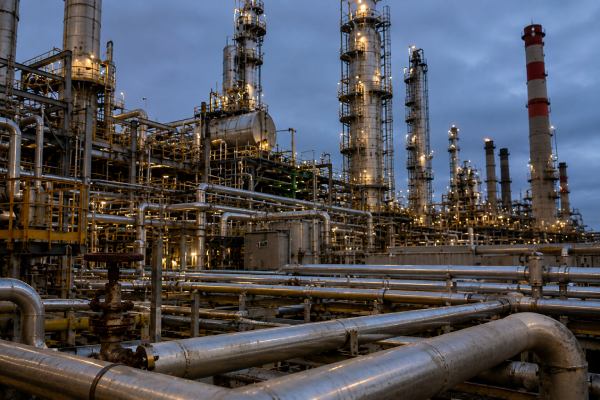

Oil and Gas

  • Petroleum products
  • Aromatics
  • Intermediates
Precision flow meter for solvent and chemical batching in oil refineries

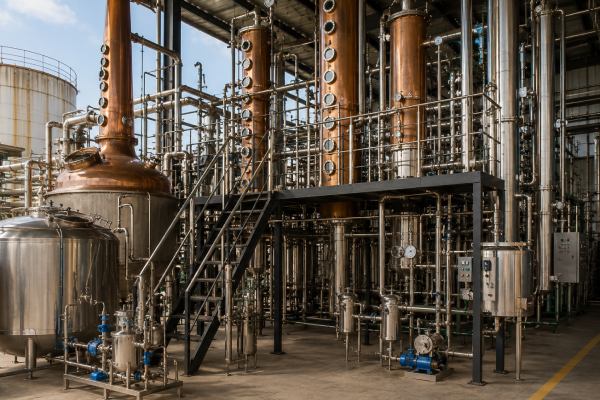

Distilleries

  • Extra Neutral Alcohol
  • Technical Alcohol

  • Rectified spirit

Petrochemical flow measurement system for solvent and chemical batching

Petrochemicals

  • Additives
  • Recovered solvents
  • Speciality chemicals

Related Product

Series 6730 – Tanker Decanting Systems

Solvent and chemical batching meter operating in harsh industrial environments
  • Catalogue
  • Instruction Manual

FAQ’s

What is solvent and chemical batching?

Solvent and chemical batching is the controlled measurement and transfer of a predefined volume of chemicals or solvents into a process, vessel, or tanker. Accurate solvent and chemical batching ensures formulation consistency, process safety, and cost control. It relies on precise flow measurement and fast valve control to deliver exact batch quantities without overfilling or shortages.

Solvent and chemical batching systems are widely used in pharmaceutical, petrochemical, specialty chemical, bulk chemical, and manufacturing industries. They are essential wherever accurate formulation, controlled transfer, or sales batching of chemicals and solvents is required, including tanker loading and reactor charging applications.

Automated solvent and chemical batching improves accuracy, repeatability, and safety. It reduces manual intervention, minimizes product loss, and ensures consistent batch sizes. Automation also enables recipe control, faster operations, and better traceability, making it ideal for regulated and high-value chemical processes.

Yes, solvent and chemical batching systems can be configured to handle multiple chemicals. Each chemical line can have its own flowmeter and valve, all managed by a central batch controller. This allows sequential or parallel batching while maintaining individual batch accuracy for each chemical.

Solvent and chemical batching systems are highly customizable. They can be tailored for different chemicals, flow ranges, materials of construction, control philosophies, and communication protocols. This flexibility allows the system to match specific process requirements, safety standards, and industry regulations.
